Overview
ATOM implements the most popular industry standard fieldbus protocols to allow you to connect and integrate ATOM into your power control systems quickly and easily. ATOM can be configured with EtherNet/IP, ModbusTCP, PROFINET, or EtherCAT
info

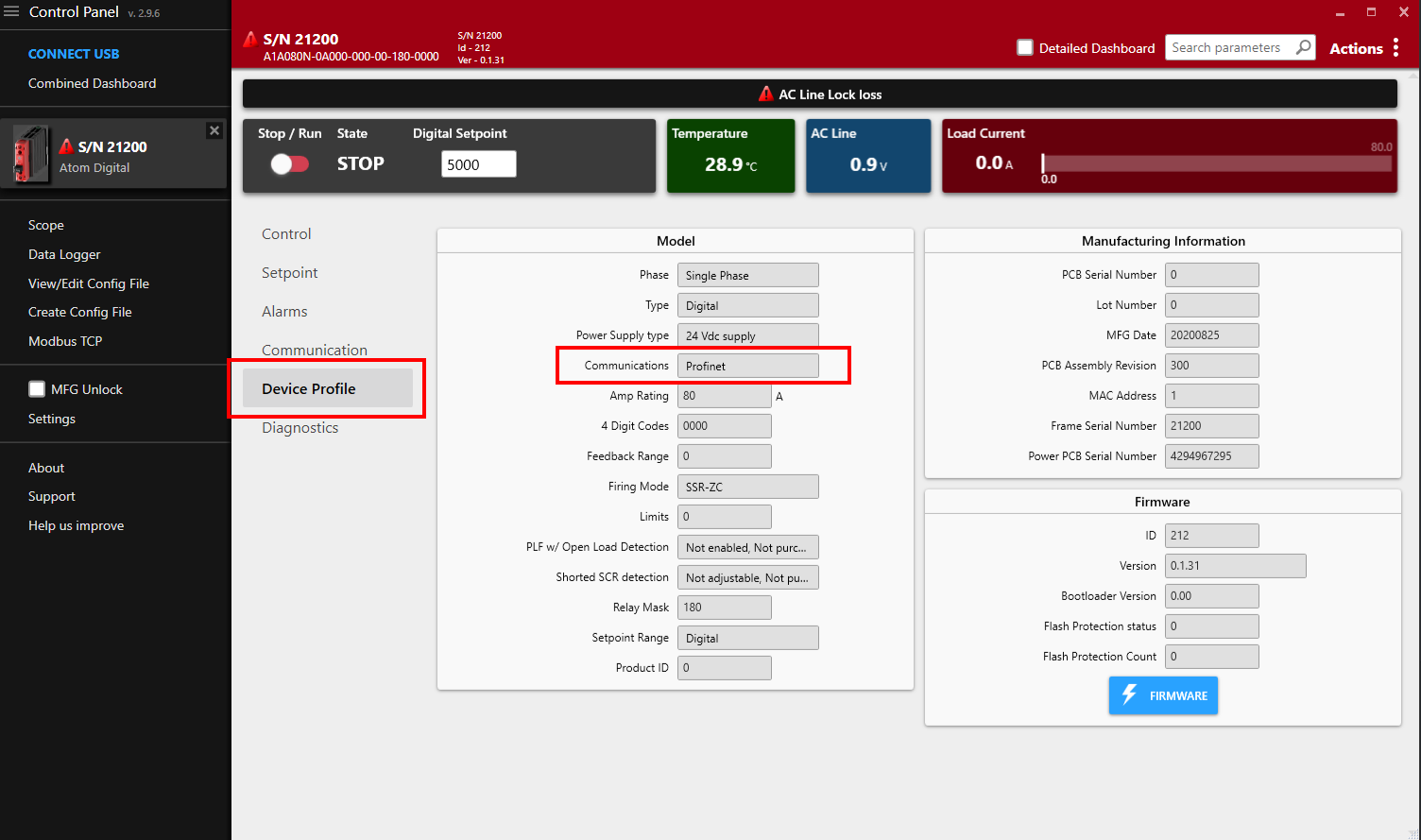

Scan the QR code on your ATOM product label or use this utility to determine which fieldbus your ATOM is configured for. You can also check the Device profile tab in Control Panel:
info
ATOM can be ordered in the following configurations:
- Single phase (
1PH)- Analog - Fieldbus not supported
- Digital - ModbusTCP, EtherNet/IP, or Profinet
- EtherCAT - EtherCAT only
- Three phase (
3PH)- Analog - Fieldbus not supported
- Digital - ModbusTCP, EtherNet/IP, or Profinet

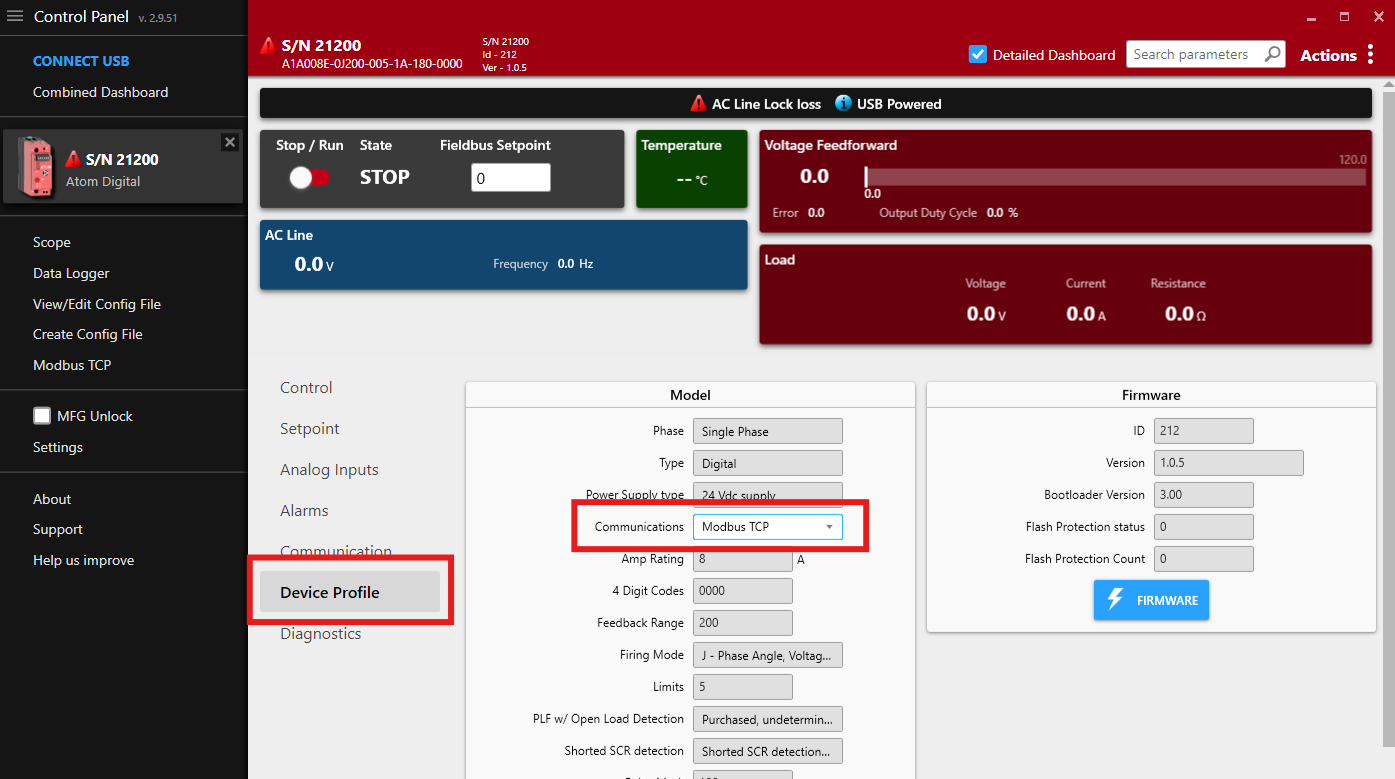

ATOM digital units can be configured for ModbusTCP, EtherNet/IP, or Profinet in software. Change the active fieldbus protocol in the Device profile tab in Control Panel. Changes to the active fieldbus take effect immediately — no reboot required.
info
